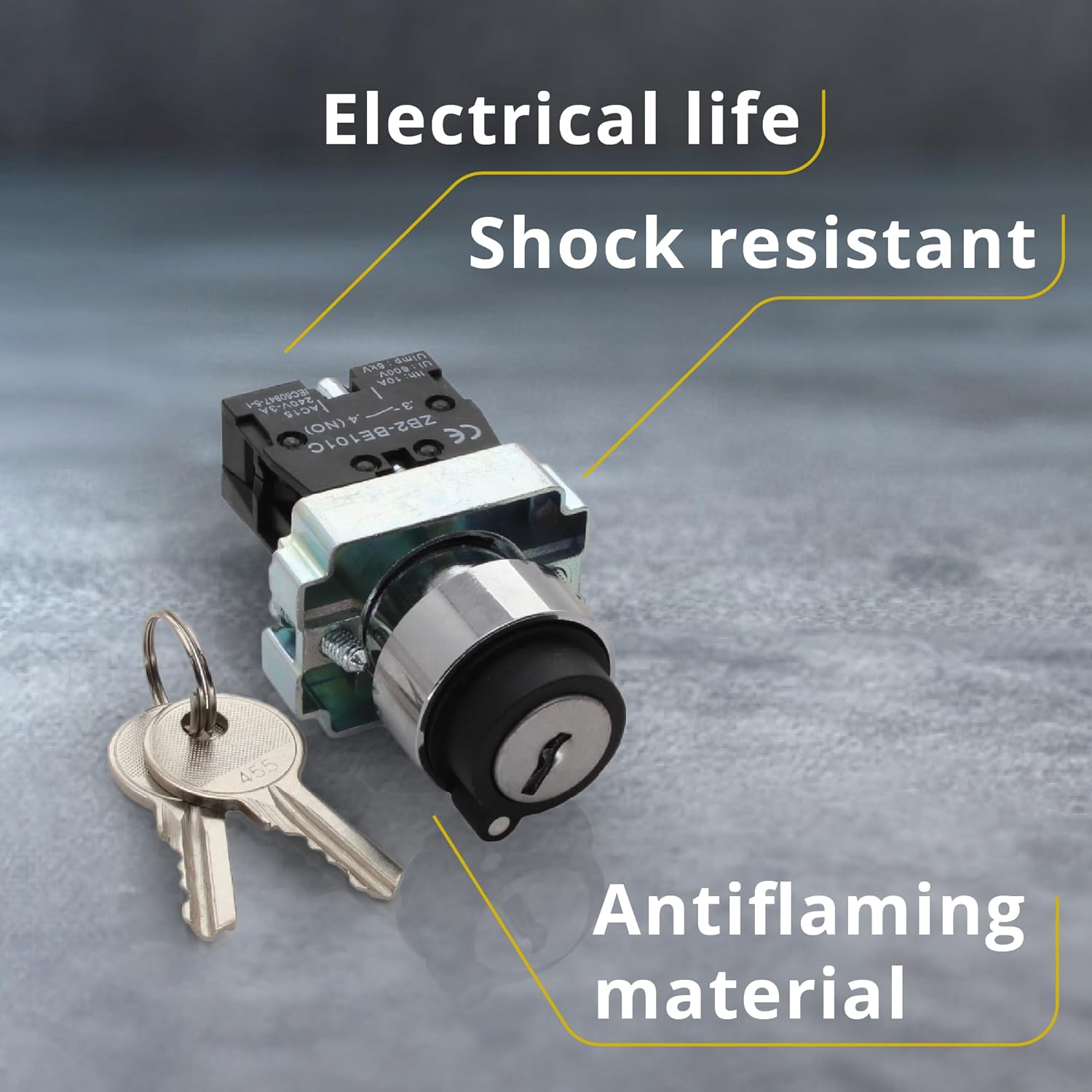

2 Position Maintained Selector Rotary Key Switch - Self-Lock Switch, 22mm Mounting Hole Size, 1NO Control Function, 415V Voltage and 10A Contact Current - XB2-BG21 Model (4 Pack)
Product details
| Management number | 221096834 | Release Date | 2026/05/03 | List Price | US$9.60 | Model Number | 221096834 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Main Specifications and Technical Data of 2 Position Key Switch - Shopcorp Selector Switch offers a two (2) position self-lock switch (rotary switch 2 position) with a 22mm mounting hole and a maintained (latching) operation type. This robust and lightweight piece is made of plastic, metal, and electronic components. It functions as a normally open (NO) switch and a key switch 2 position. No battery required. Our buttons conform to the GB/T14048.5 standard.
- Working Condition of On Off Key Switch - Operating voltage (Ui): 415V; Contact current: 10A; Protection grade: IP55; Certification: CE, CCC; Operating temperature: between -25°C and +70°C; Operating humidity: 50%; Vibration resistance: 15g, amplitude is about 1.0mm; Electrical durability/life: 50,000 times; Shock resistance: 200g; Operation Mode: on-none-off.
- Versatility of 2 Position Switch - This switch is used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage of 415V and below, DC operational voltage of 220V and below, for controlling electromagnetic starters, contactors, relays, and other automatic electrical circuit controls. It can withstand harsh weather conditions due to its lock, fall, and vibration resistance. Shopcorp Selector switches are versatile and widely used, including in many electrical appliances in the home.
- Installation and Disassembly of Rotary Switch - To install, unscrew the nut and fix the head. Align the top of the head with the direction of the buckle and put the switch seat on. Secure by turning the buckle back to its original position. For disassembly, pull the head out from the middle seat, hook the convex point of the clasp with the index finger, pull gently, and then move the buckle to the other side.

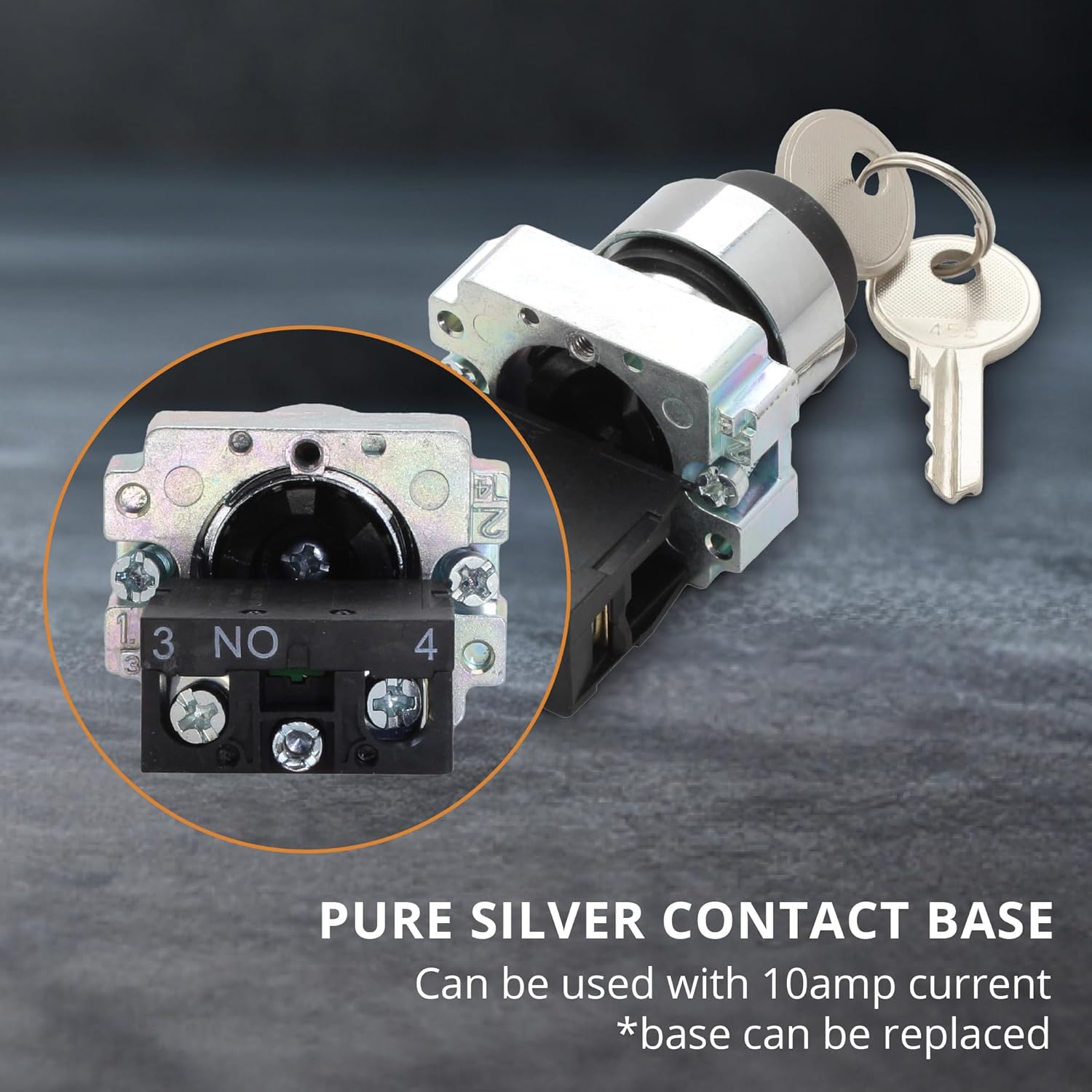

- Stable Working Performance of Barrel Key Switch Momentary - This Selector Switch is made of non-flammable materials and resistant plastic, ideal for use in high-temperature environments. Its thick Aluminum Alloy circuit will protect the Switch Head, giving it a long working life and anti-oxidant properties. Finally, its pure Silver Contact Base makes it possible for the switch to be used with 10 Amp current and can be replaced, as it is separate from the switch head.
| UPC | 810081420709 |
|---|---|
| Model | key switch 4pack |
| Brand Name | SHOPCORP |
| Unit Count | 4.0 Count |
| Part Number | FBA-KeySwitch-XB2-BG21-4PCK |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | SHOPCORP |
| Actuator Type | Rotary |
| Material Type | Metal, Plastic |
| Mounting Type | Surface Mount |
| Connector Type | Clamp |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Number of Items | 4 |
| Operating Voltage | 415 Volts |
| Specification Met | Ccc,certification |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 70 Degrees Celsius |
| International Protection Rating | IP54 |
